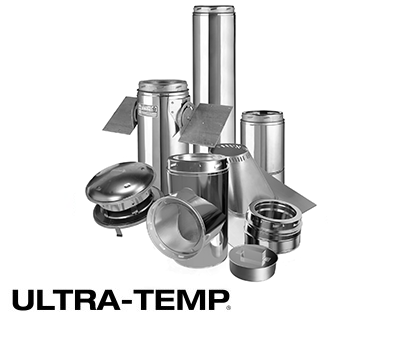

Chimney - Ultra-Temp
Ultra Temp is the superior choice with stainless steel inner liner and outer jacket for small residential applications to large custom chimney projects.
- Available in 4"–14" Diameters
- Stainless Steel inner and outer
- Mirror Finish
- Twist-Lock for secure connection
- Solid Pack Insulation
/en/product/ultratemp/
/en-ca/product/ultratemp/
/fr-ca/produit/cheminee-ultra-temp/
The coupling systems easily Twist-Lock together for quick and easy installation. For added protection the slim design lock band neatly conceals and protects seams. Ultra-Temp All-Fuel chimney offers a wide range of diameters for residential and light commercial applications.
4"–8" Diameter:
- 304 Stainless Steel Inner Liner
- 430 Stainless Steel Outer Wall
- 1" Solid Pack Mineral Wool Insulation
- Gas and oil applications
- Can be used with specific certified factory-built fireplaces listed to CAN/ULC-S610
- Adjustable lengths for ease of installation
- Multiple Support Kits available
- Smart Choice Warranty on all components
10"–14" Diameter:
- 430 Stainless Steel Inner Liner
- 430 Stainless Steel Outer Wall
- 1" Solid Pack Mineral Wool Insulation
- Gas and oil applications
- Can be used with specific certified factory-built fireplaces listed to CAN/ULC-S610
- Light commercial/industrial applications
- Cost effective, smaller footprint option for new and existing construction
- Smart Choice Warranty on all components
Approvals:
- 4" to 8" -- Listed to CAN/ULC-S604
- 10" to 14" -- Listed to CAN/ULC-S604 and CAN/ORD-C959
- DIKAPT 5" to 8" -- Newly Listed to UL103 TYPE HT
- On approved appliances
