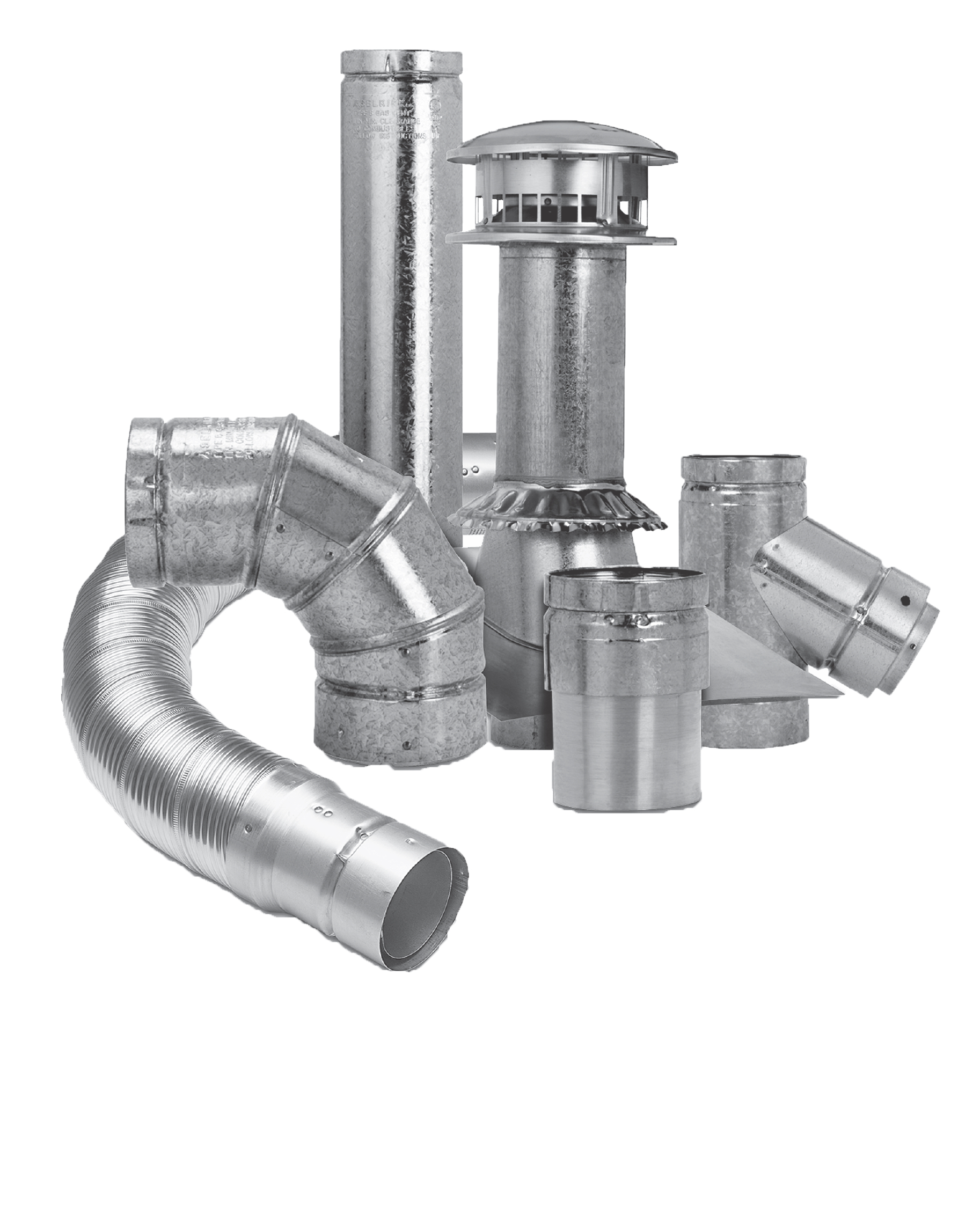

Type B Gas Vent - Round
Model RV is a round Type B Gas Vent that features our patented Lock-Tab locking system which provides 360 degree flexibility while maintaining security.
- Available in 3" - 8" diameters
- Aluminum inner liner
- Galvanized outer wall
- Category I appliances
Model RV Double Wall Gas Vent is the installer's choice for residential, industrial and light commercial applications. The aluminum liner heats up quickly to promote strong draft. Galvanized outer provides protection against outdoor elements. Product line includes DWC Double Wall Connectors and EFC Expandable Flex Connectors.
3"-8" Diameters:
- Aluminum inner liner
- Galvanized outer wall
- Double-wall design with 1/4" uniform airspace

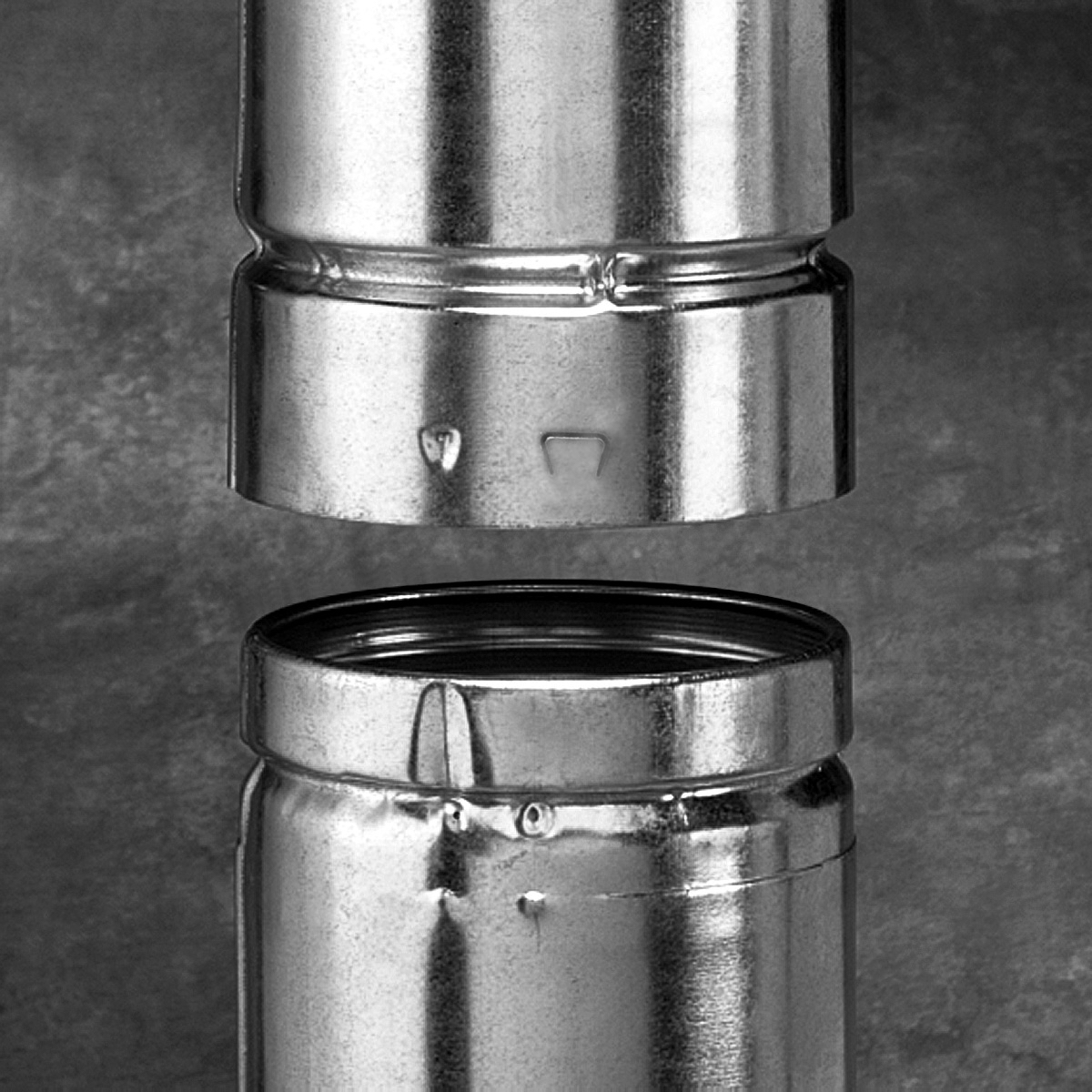

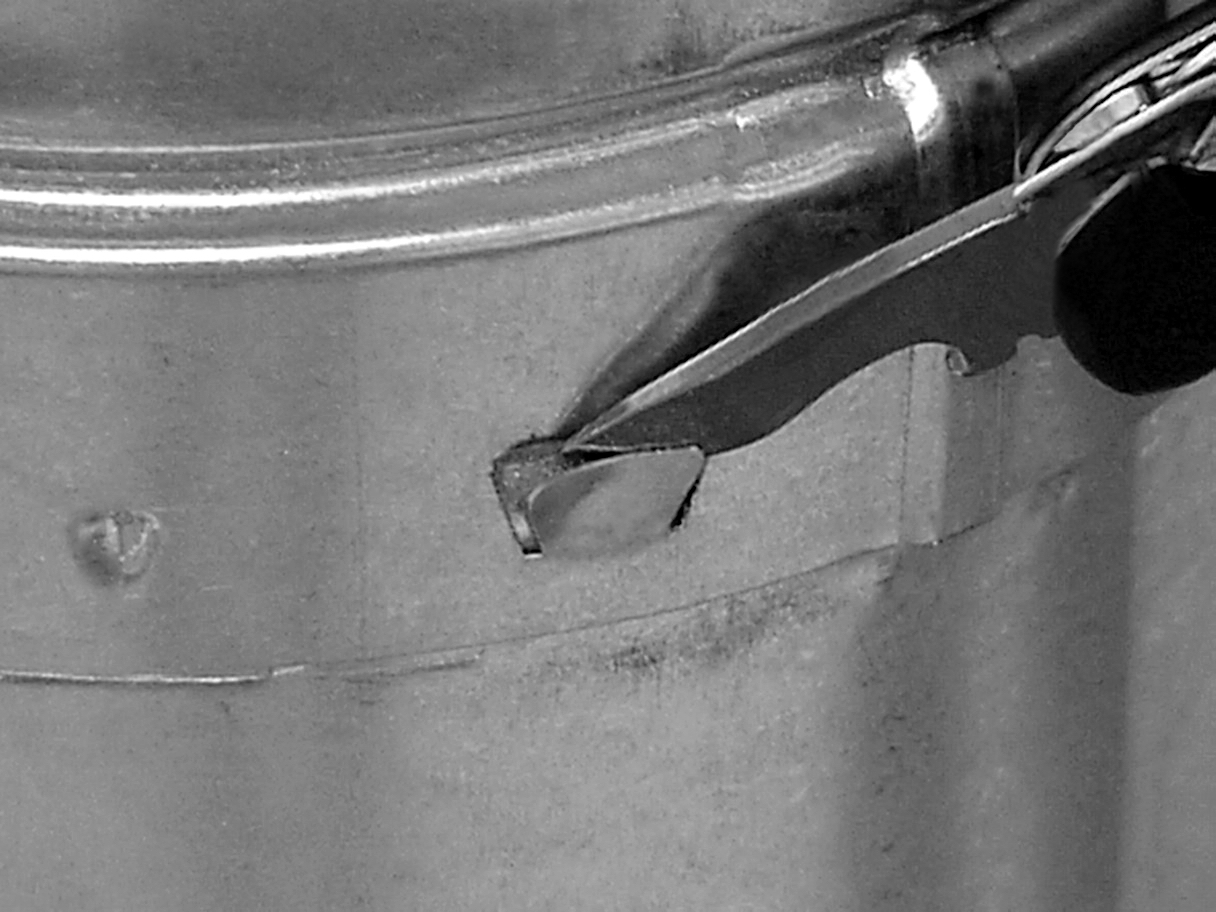

- Snap Lock coupler with optional Lock Tab
- Secure connection with 360° rotation for perfect alignment
- Die formed male end eliminates sharp edges
- 1" clearance to combustible
- Smart Choice warranty on all components
DWC 3"-5" Diameters:
- Flexible double wall aluminum construction
- Built-in Model RV couplers for easy connection
- "Segment" of an unenclosed gas vent
- Available in 2', 3', 4' and 5' lengths
- Smart Choice warranty on all components
EFC 3"-4" Diameters:
- Expandable and flexible connector
- Aluminum construction
- Built-in couplers for easy connection to the appliance and Model RV
- Smart Choice warranty on all components
Approvals:
- Listed to UL 441 in the U.S.A.
- Model RV Installation Instructions

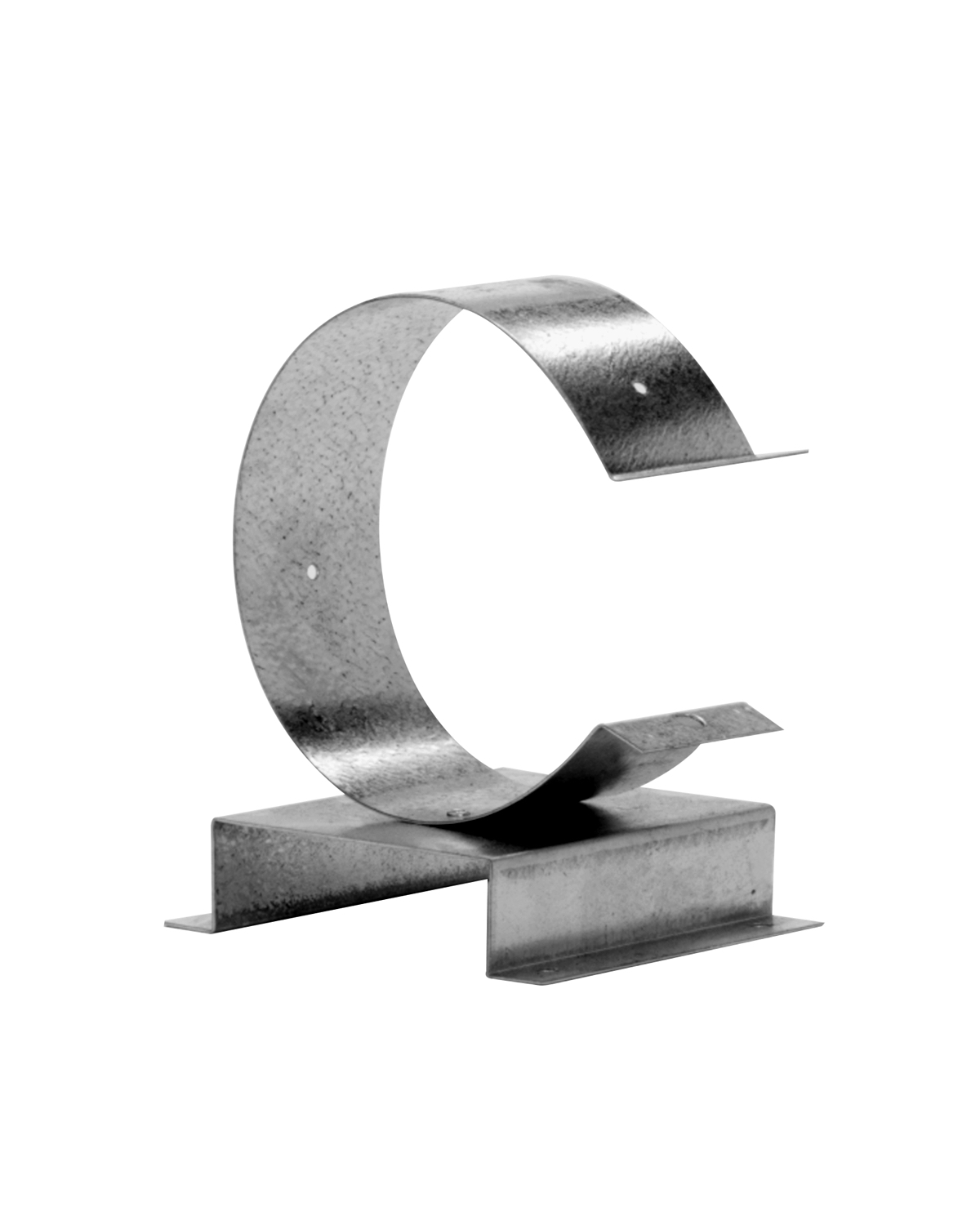

- Wall Support Band Assembly (WS_B)

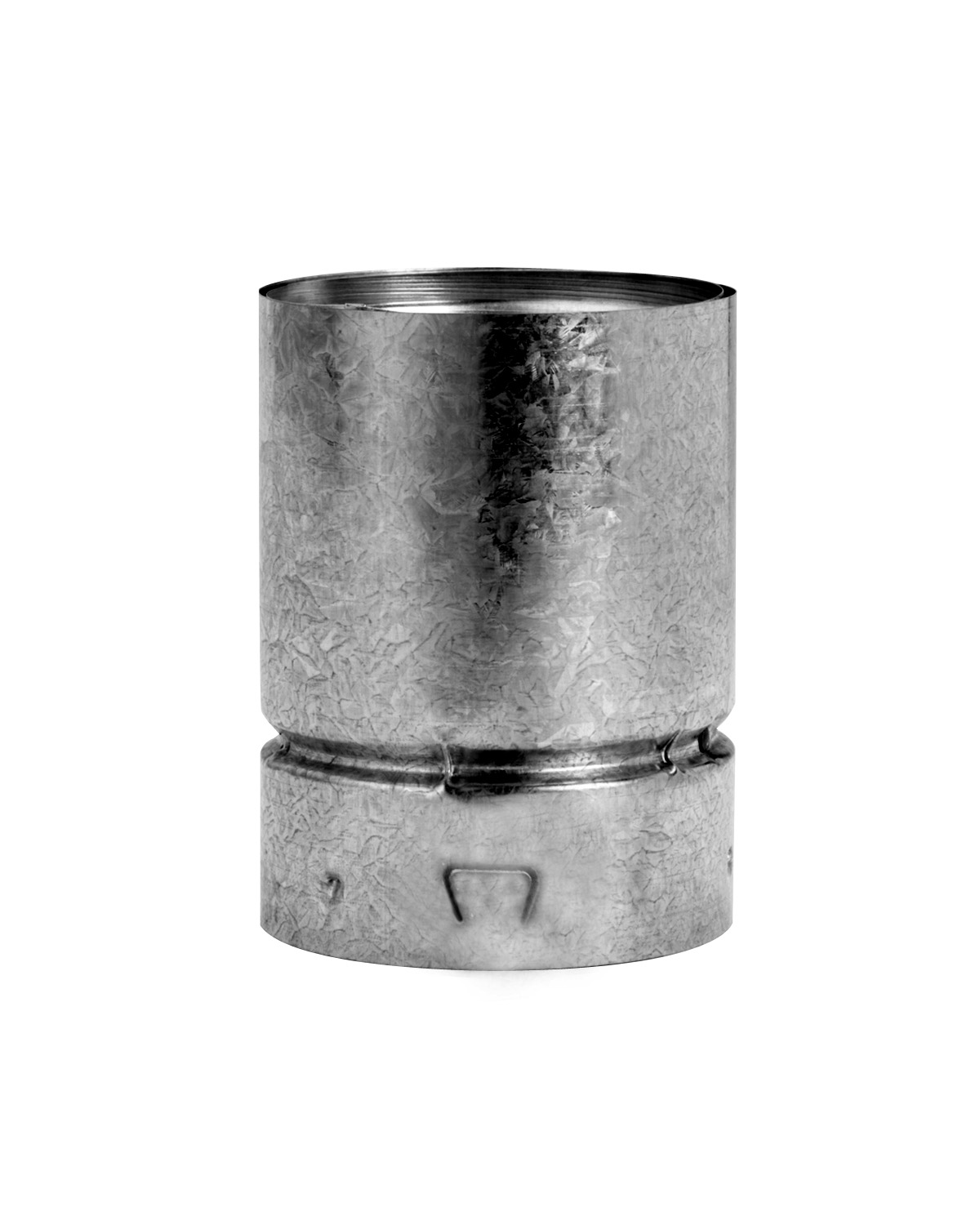

- Universal Male and Female Adapters (UAM_UAF)

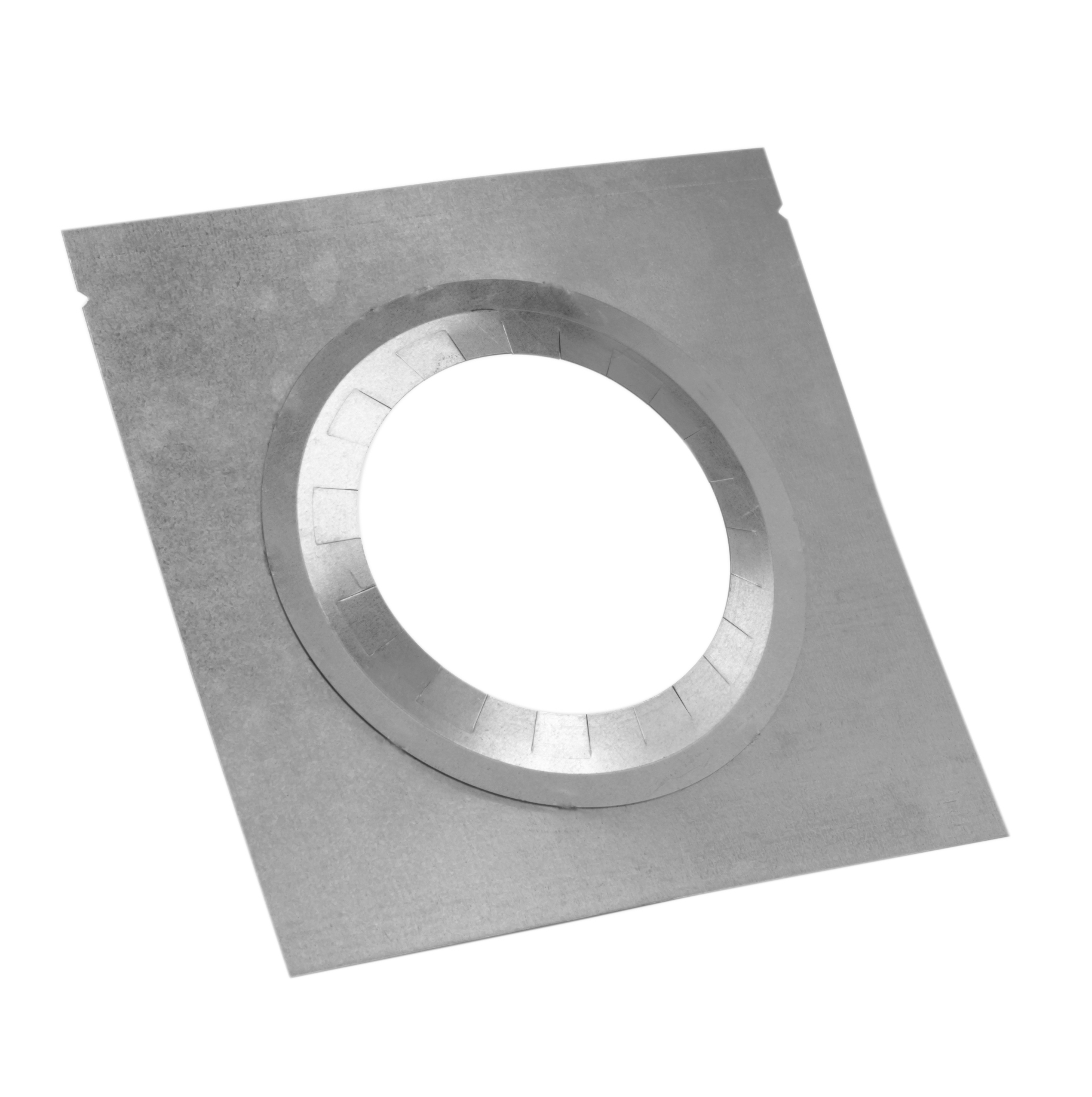

- Quick-Grip Firestop Support (FSP)
- Quick-Grip Firestop Support (FSPU)
- Double Wall Flex Connector (DWC)
- Expandable Flex Connector (EFC)

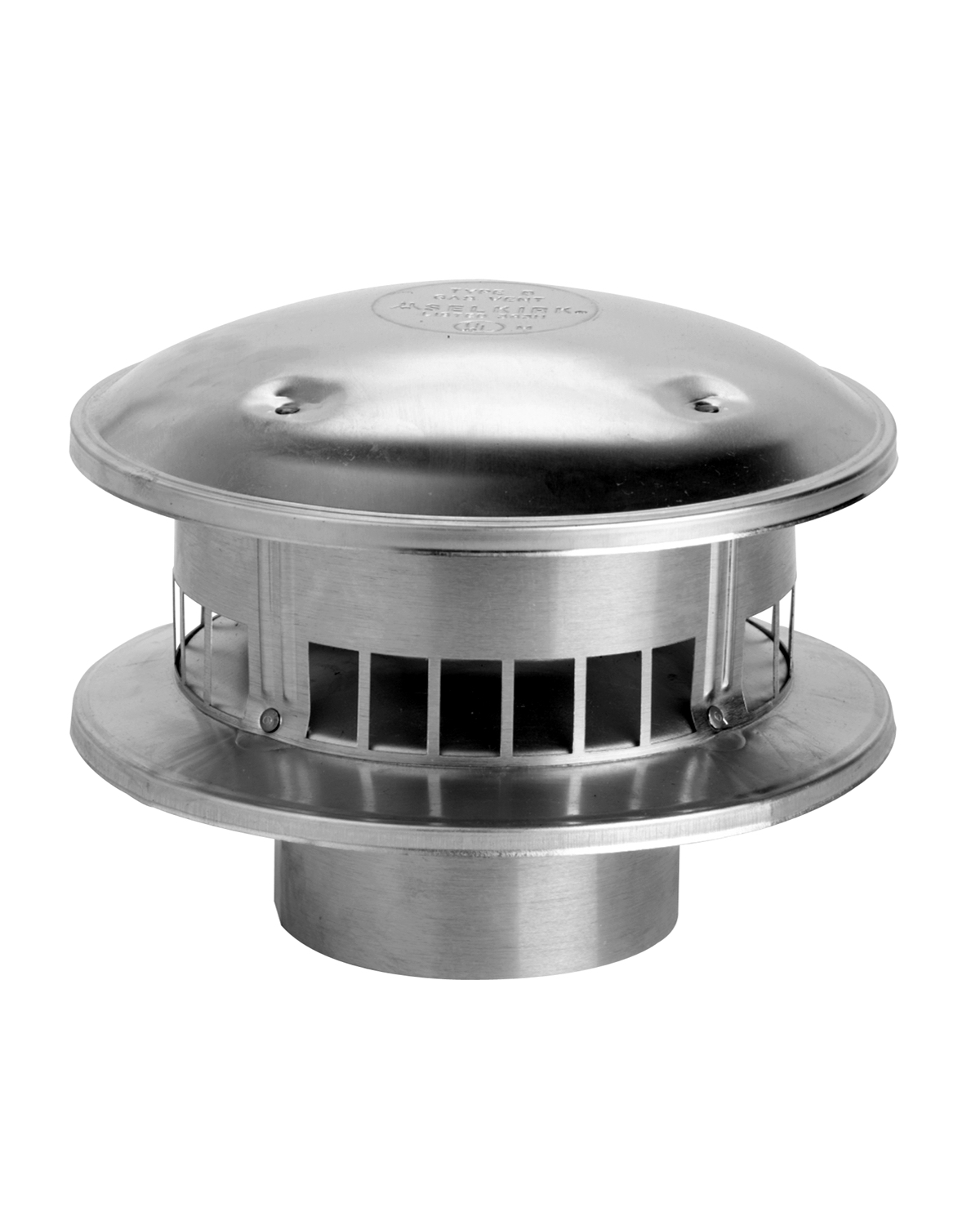

- Universal Vent Cap Installation Instructions - English
- Universal Vent Cap Installation Instructions - French
