Ultimate StovePipe

All the components you expect & need to connect a stove to a chimney

Available in 6", 7", and 8" diameters
Pipe Lengths: 6" to 48"
Heavy gauge stainless steel inner liner
Satin coat steel outer jacket
Stove Bright Metallic Black - scratch resistant finish

6", 7" & 8" Diameters
All the components you expect & need to connect a stove to a chimney
- Pipe Lengths: 48", 36", 24", 18", 12" 6"
- Adjustable Lengths: 2" to 4", 2" to 10", 2" to 16", & 2" to 34"
- Two-piece telescopic length: 36" to 68"
- Elbows: 90°, 45°, and 30° options
- Stove Adapters: Standard, Low Profile, Oval-to-Round, and Jotul-specific
- Specialty Components: In-line Damper, Increasers, Reducers

Ease of Installation
- Advanced engineering & manufacturing for precise fit
- Easy-to-assemble with 3 screws per joint using pre-drilled pilot holes
- Fits most stove outlet designs
- Widest variety of pipe components in the industry providing versatility to suit any installation
Quality
- Welded inner and outer seams
- Satin coat steel 0.018" outer jacket
- 430 stainless steel 0.016" inner liner for corrosion resistance and long life
- Drip-free design to prevent creosote leakage
- Components individually packaged to protect against damage due to handling

Appearance
- Smooth, clean appearance on all components - pipe lengths, elbows, and tees to compliment any stove & home interior
- Sleek & smooth with a scratch resistant painted finish
- Stove Bright Metallic black selected for wide availability of touch-up where needed
Performance
- Air-insulated, double wall design - 7/16" air space
  - Reduces clearances: 6" to combustibles (wall or ceiling)
  - Provides better insulation
  - Improves draft
  - Reduces moisture to minimize creosote build-up & minimize maintenance
- Smart Choice Warranty

Ultimate Stove Pipe

Images

Increaser

Masonry Adapter

Reducer

Telescopic Kit

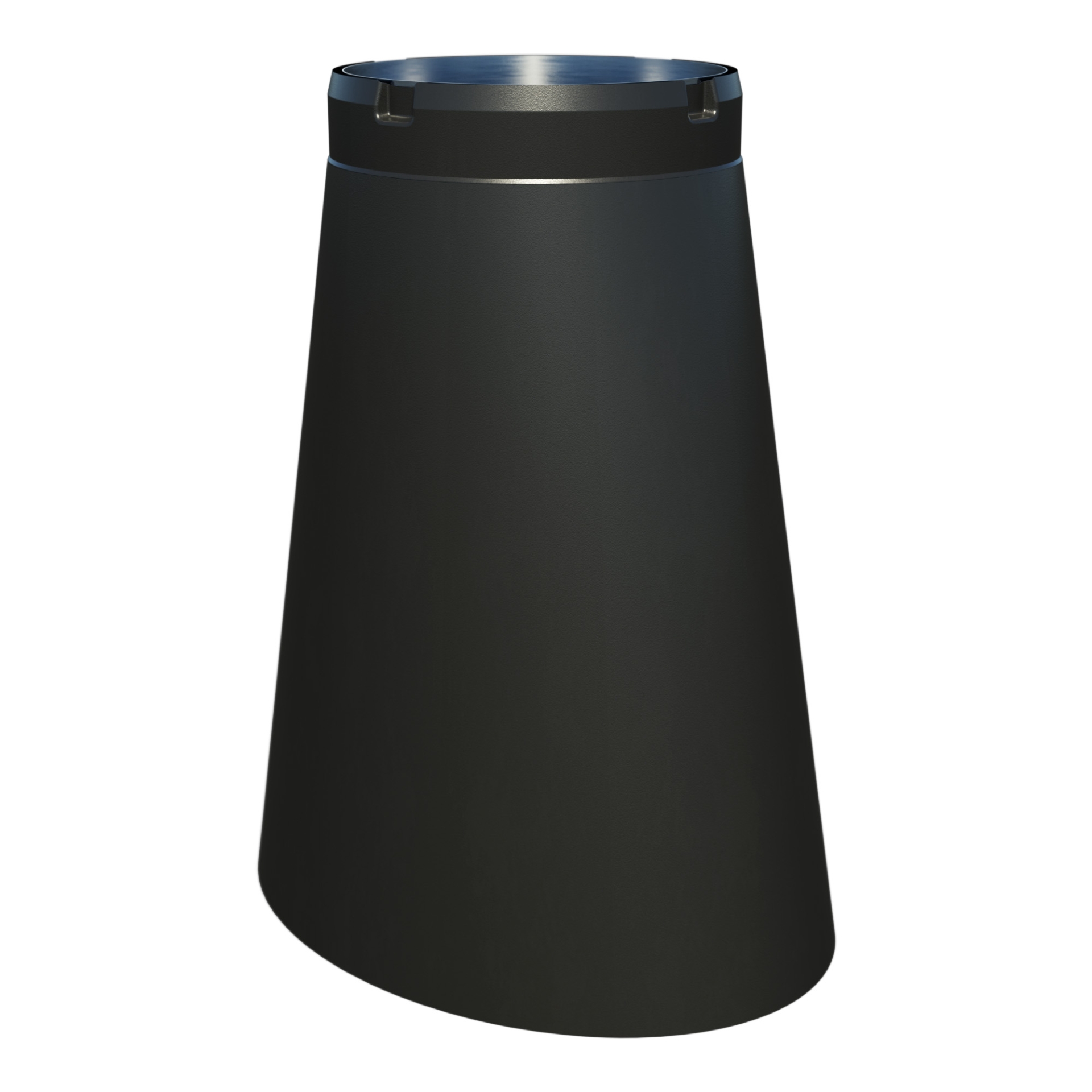

Oval to Round Adapter

Adjustable Length

Oval to Round Adapter

Wide Finishing Band

Adjustable Length - 6"

In-Line Damper

45° Elbow

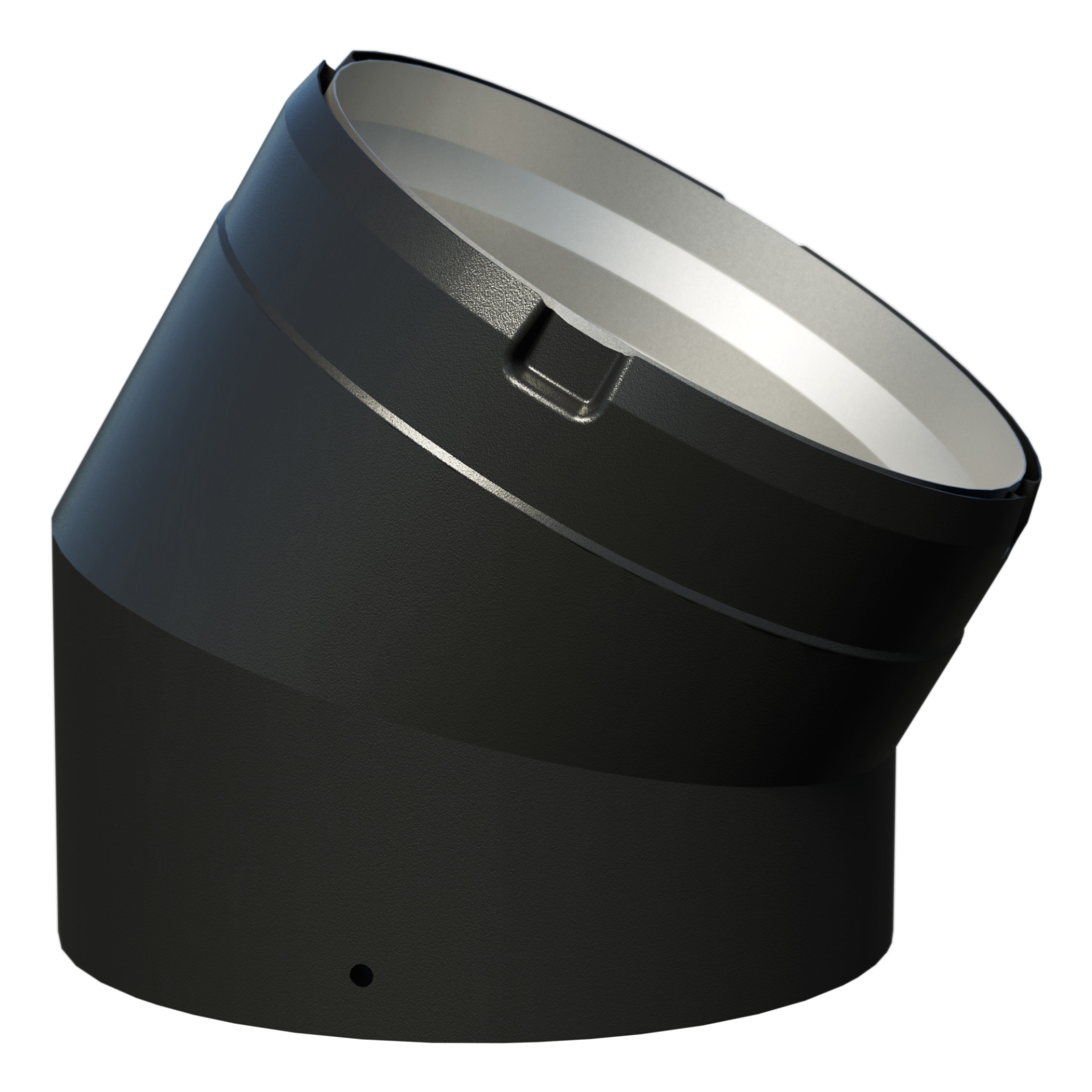

30° Elbow

Tee & Cap

Pipe Length

90° Elbow

JOTUL Adapter

Installation Diagrams

Through the wall Installation

Straight-Up Installation

Masonry Installation

Clean-out Installation
