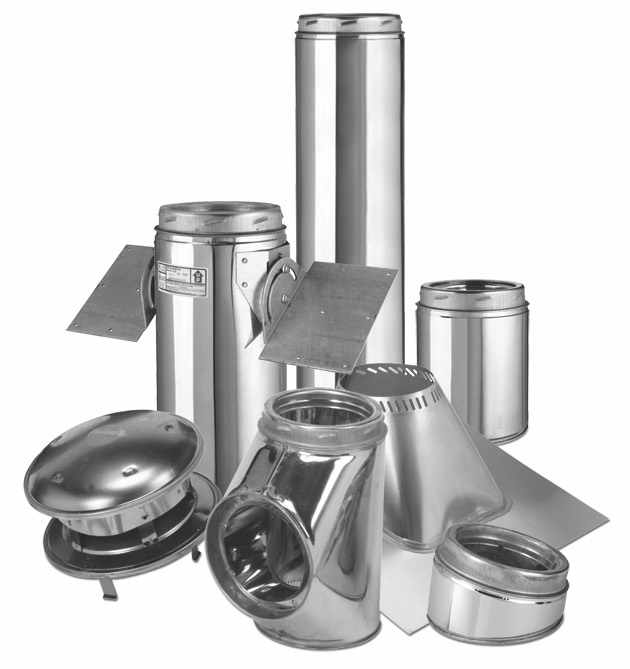

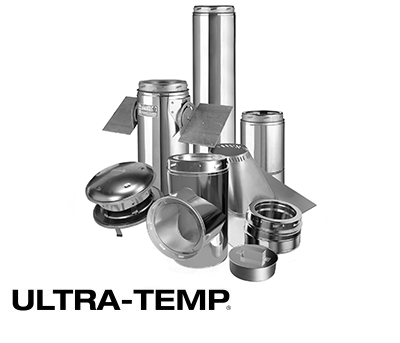

All-Fuel Chimney - Ultra-Temp
Ultra Temp is the superior choice with stainless steel inner liner and outer jacket for small residential applications to large custom chimney projects.
- Available in 4"–14" Diameters
- Stainless Steel inner and outer
- Mirror Finish
- Twist-Lock for secure connection
- Solid Pack Insulation
/en/product/ultratemp/
/en-ca/product/ultratemp/
/fr-ca/produit/cheminee-ultra-temp/

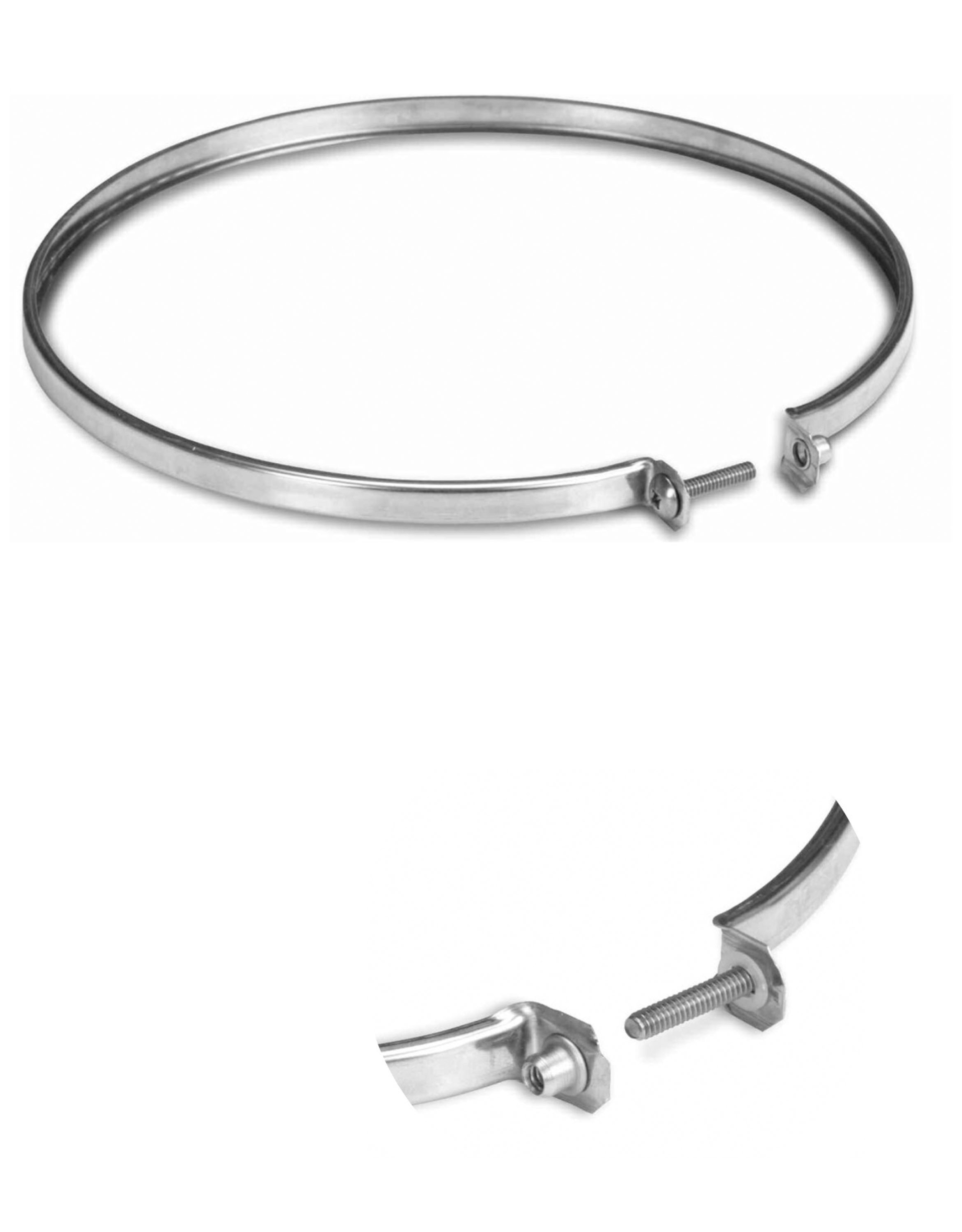

The coupling systems easily Twist-Lock together for quick and easy installation. For added protection the slim design lock band neatly conceals and protects seams. Ultra-Temp All-Fuel chimney offers a wide range of diameters for residential and light commercial applications.
4"–8" Diameter:
- 304 Stainless Steel Inner Liner
- 430 Stainless Steel Outer Wall
- 1" Solid Pack Mineral Wool Insulation
- All residential fuels
- Adjustable lengths for ease of installation
- Multiple Support Kits available
- 4" Diameter available for tiny homes and recreational applications
- Ultra-Temp and Galva-Temp can be combined to make a complete and cost effective solution
- Smart Choice Warranty on all components
10"–14" Diameter:
- 430 Stainless Steel Inner Liner
- 430 Stainless Steel Outer Wall
- 1" Solid Pack Mineral Wool Insulation
- All residential fuels
- Light commercial/industrial applications
- Cost effective, smaller footprint option for new and existing construction
- Ultra-Temp and Galva-Temp can be combined to make a complete and cost effective solution
- Smart Choice Warranty on all components
Approvals:
- 4" to 8" -- Listed to UL103 TYPE HT
- 10" to 14" -- Listed to UL103 and UL 2561
- DIKAPT 5" to 8" -- Newly Listed to UL103 TYPE HT
- On approved appliances
- GS General Installation Instructions
- Installation Instructions - UT 4" Diameter
- SP Chimney Parts and Accessories
- S1 Finish Ceiling Support, Ceiling Support and Connectors

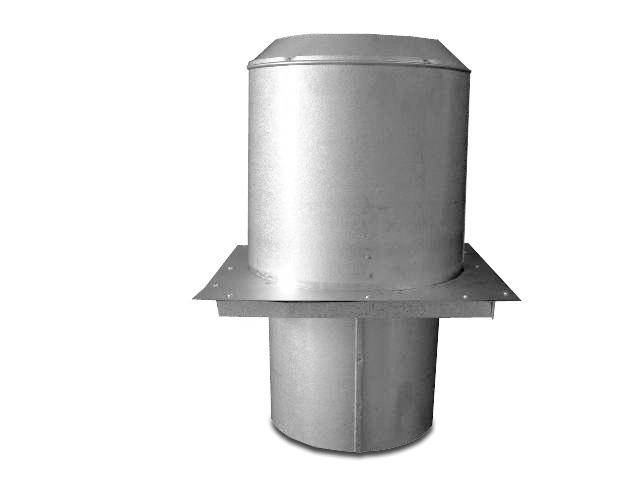

- S2 Firestops and Attic Insulation Shields
- S3 Round Top, Flashings, Storm Collar, Spark Arrester and Roof Brace Kit
- S3 Supplement EZCT Chimney Top
- S4 Roof Support Package & Anchor Plate
- S5 Tee, Wall Support Kit and Interior Re-Support
- S7 Firestop Joist Shield, Trim Plate Space, Pitched Ceiling Plate and Wall Thimble
- S8 Roof Support Kit (RSK)
- S9 Cathedral Support Box (SB)
- S10 Adjustable Length
- S11 Universal Metal Roof Flashing Kit
- Dripless Smoke Pipe Adapter (DSA)
- Anchor Plate with Damper (ADP)
- Sheet Bond Beam
- Extended Wall Support (EWS)
- Universal Wall Re-Support Assembly (UWRSA)
- Universal Roof Support Assembly (URSA)
- Universal Interior Re-Support Assembly (UIRA)
- Universal Adjustable Wall Band (UWB)
- Rubber Boot Flashing Kit (URBFK1)
- Rubber Boot Flashing Kit (URBAK)
- Custom Chase Tops and Shrouds Supplement
- Heavy Duty Roof Brace Kit (HDRBK)
- Roof Brace Kit (RBK)
- Universal Roof Brace Kit (URBK_JURGK-1)
- Round Top (CT)
- Universal Spark Arrester (USA)
- Snow Splitter Assembly Instructions
- Universal Shielding Insulation (SUSI_JUSI)

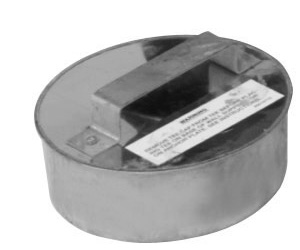

- Universal Tee Cap Retainer (UTCR)
- Metal Roof Flashing Kit
- DIKAPT Installation Instructions
